2PH 220V High Torque Servo Motor With PL120 Gear Box , High Speed Ac Motor 1200 Watt

Name: 2PH 220V High Torque Servo Motor With PL120 Gear Box High Speed Ac Motor 1200 Watt
Brand: SZGH
Price: 1 USD

Wholesale 2PH 220V High Torque Servo Motor With PL120 Gear Box , High Speed Ac Motor 1200 Watt from china suppliers

Brand Name : SZGH

Model Number : SZGH-11120BC

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : with international standard carton or wooden box

Flange : 110mm

Size : 31*29*22

H.S code : 9032899003

Power : 1200W

feature : with high quality of encoder

weight : 8kg

Contact Now

11120BC is 1200W servo motor, this model is very hot sale , optimum matching with our AC servo driver to real ize optimum servo performance

Feature:

Rated Power (W): 1200 W
Continuous Torque:6.0Nm
Peak Torque: 12 Nm
Rated Rotation speed (r/min): 2000 RPM
Encoder Resolution (PPR): 2500

Rated Voltage (V): 220

Rated Current (A): 3.0

Rotor Inertia (kg.m2x10-4): 7.6

Application Environment:

Work temperature: 0°C~ 40°C

Relative Humidity: < 90% RH

Altitude : < 1000 m

Non corrosive ,non flammable gas and dust and oil-mist

Matched Driver: 030M2 SERVO DRIVER

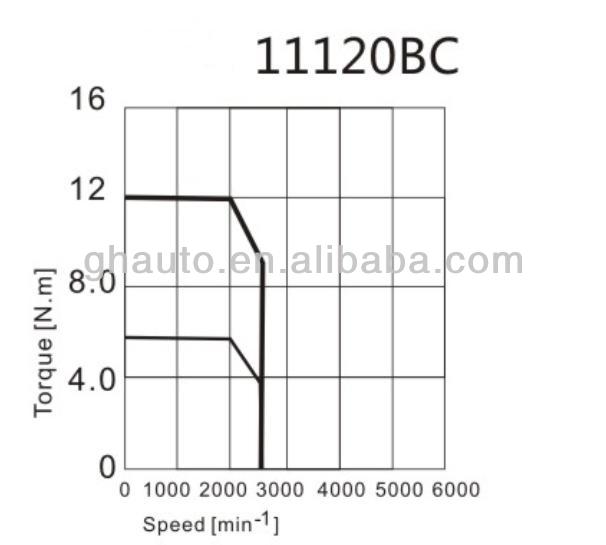

Torque-frequency character diagram:

2PH 220V High Torque Servo Motor With PL120 Gear Box , High Speed Ac Motor 1200 Watt

Product Dimension :

Packaging & Shipping

Packing detail:

1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2.Commercial packing: plastic bag+ foam boxes + carton

3.As the clients' requirement

Delivery Detail: Normally ready goods and stock within 2-5days
